6. Odyssey Azimuthing Pod Propulsion
Back to this item in New Technology Catalog
Odyssey Installation and Flow
These images illustrate the current Odyssey concept baseline. They communicate installation, access, and hydrodynamic intent; they are not certified naval-architecture or production drawings.
Installation geometry: this view illustrates the common port-and-starboard spoon recess, removable 360-degree azimuth collar, and protective centerline keel concept. It does not establish exact class stationing; the live design distributes pods longitudinally within the aft portion of each hull.

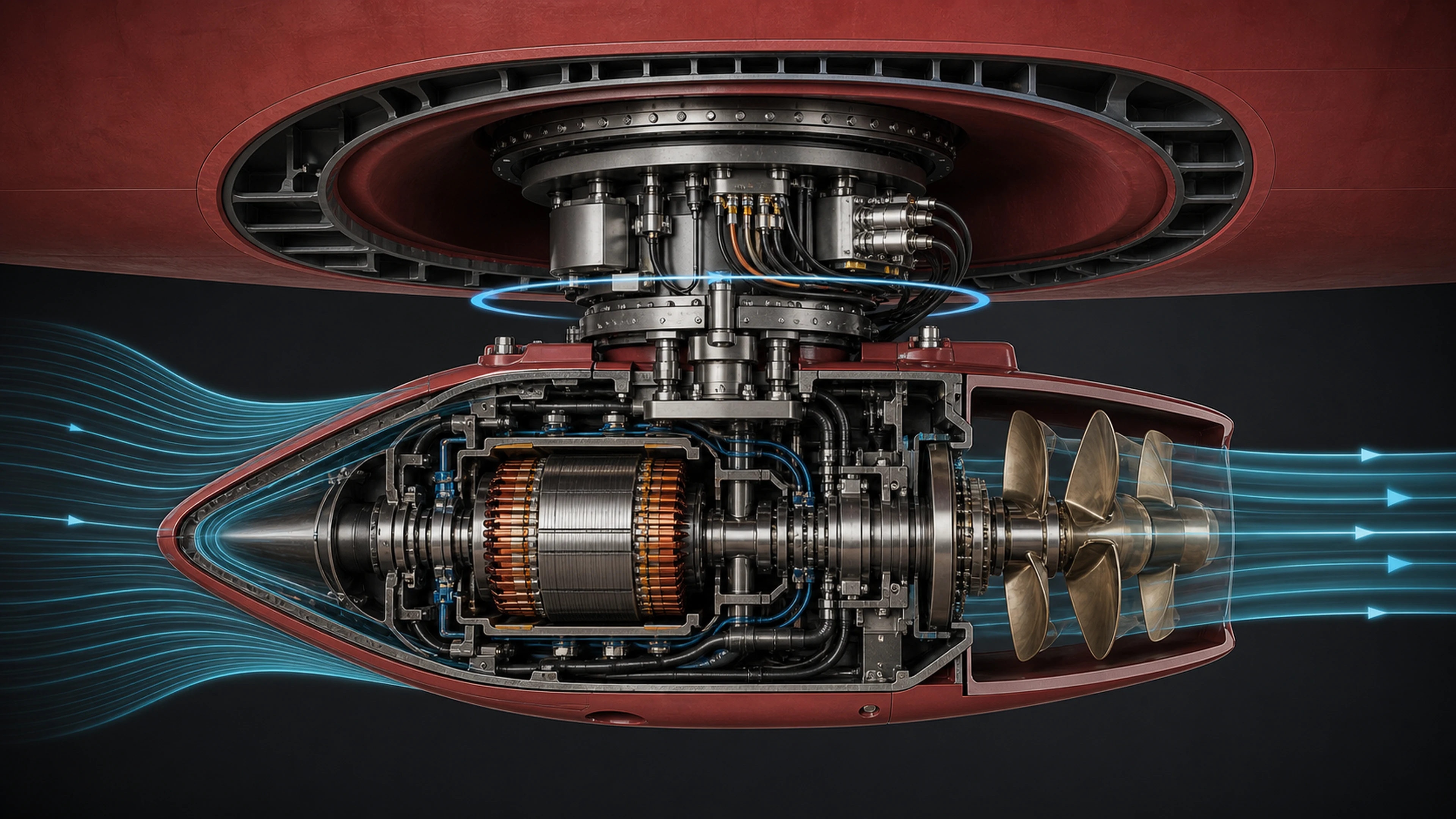

Longitudinal cutaway: ship power, cooling, control, and data enter through the service trunk and rotating collar. The electric motor drives the shrouded counter-rotating propulsor while the spoon-shaped inlet keeps flow attached into the unit.

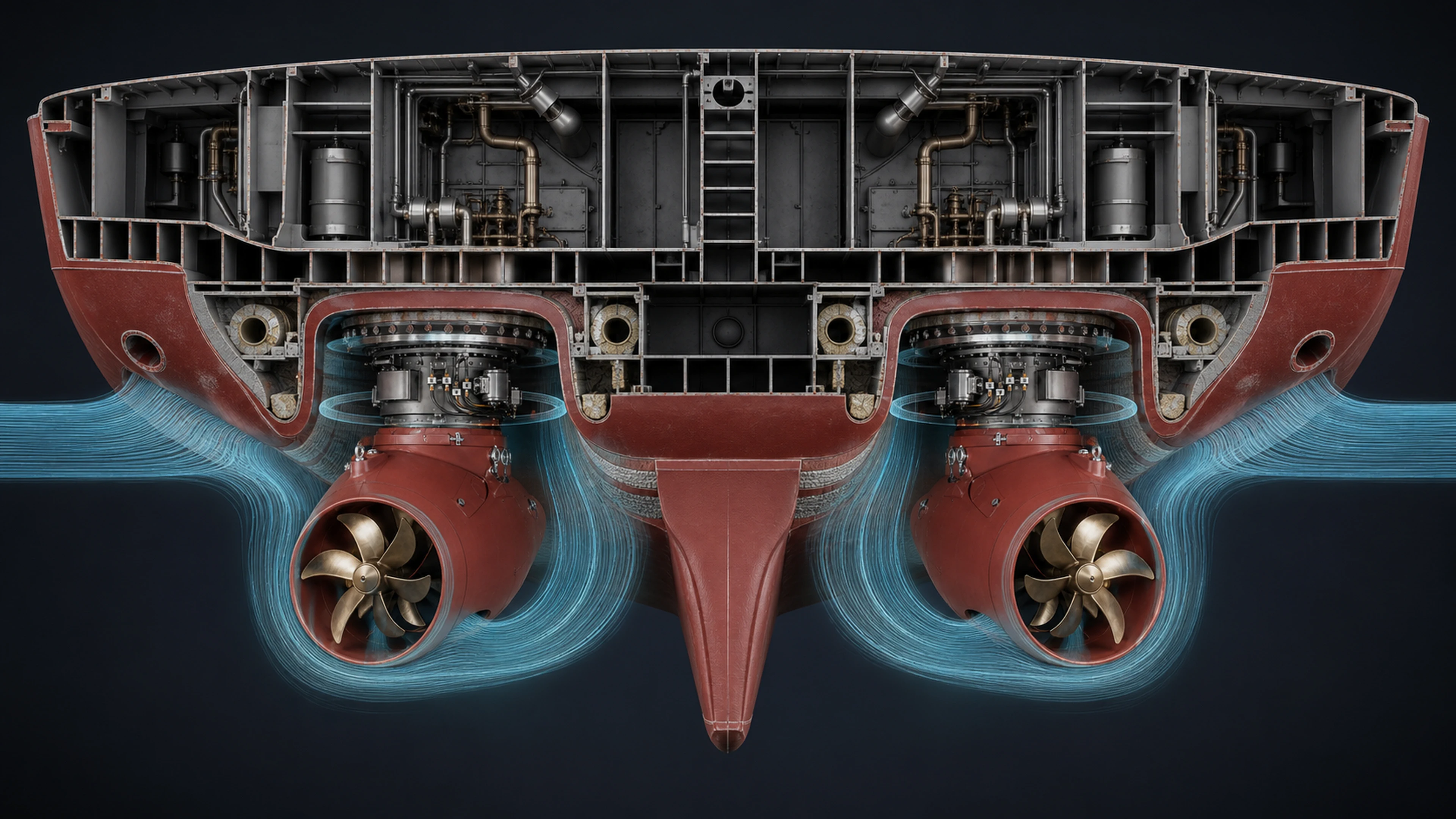

Transverse installation: reinforced foundations carry the port and starboard pod loads into the hull structure. Separate recesses preserve clean inflow, and the deeper centerline keel is intended to take first grounding contact.

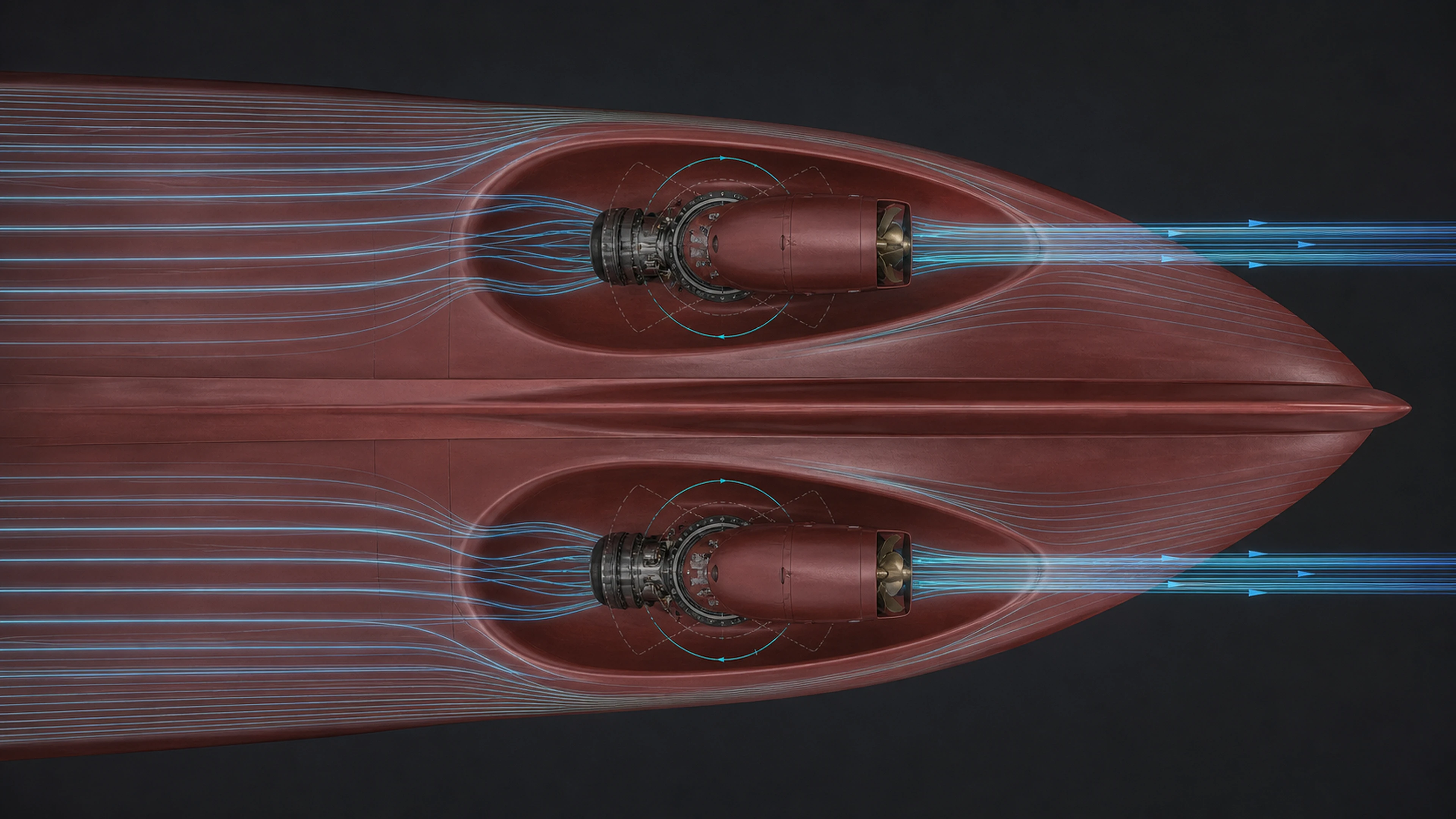

Bottom-plan waterflow: this illustrative pair shows how each shallow spoon recess begins forward of its pod, guides attached flow into the propulsor shroud, and discharges a controlled wake aft. Final class-specific longitudinal spacing, recess depth, wake interaction, and damaged-operation behavior remain subject to CFD, model-basin, acoustic, cavitation, shock, grounding, and survivability testing.
What It Is
- Core parameter: 360-degree azimuthing electric pod architecture.
- Class configuration: Odyssey pods are rated at 25MW continuous with a 27MW short-duration sprint objective, all are fully azimuthing 360-degree pods, and all are the same fleet-standard interchangeable propulsion unit, with CAG 4 pods, DDG 3 pods, and FFG 2 pods.
- Hull integration style: mounted into spooned aft hull sections using counter-rotating screws to reduce draft where possible without giving up cavitation control, seaworthiness, ASW flow quality, or efficiency.
- Benefits: maneuverability, acoustic control, and machinery-layout flexibility.
- Transition path: early FFGs can use shafts/rudders before full pod rollout.
- CAG transition note: first 2-3 CAG hulls may use shaft/rudder if Odyssey approval is not complete at build start.
Why We Are Doing It
- Improve maneuverability and acoustic performance for contested maritime operations.
- Standardize propulsion growth path across all three classes.
Used Today / What It Counters
- Used today: azimuthing pod architectures are proven in commercial practice and adapted in military transition pathways.
- Counters: maneuver and acoustic limitations of fixed shaft/rudder-only configurations.
Current Stop Gap
- Shaft/rudder propulsion remains authorized until Odyssey pod qualification is complete.
Next Flight Implementation Steps
- Complete qualification and survivability testing for pod systems.
- Stand up yard tooling, workforce certification, and spare-parts support for pods.
- Introduce on next eligible flight and expand by block once readiness gates are met.
Options and Styles
- Configuration Options: all Odyssey pods share the 25MW continuous / 27MW short-duration objective rating, all are fully azimuthing, and all use one common plug-and-play fleet standard.
- Transitional Style: shaft/rudder fallback for early flights while preserving later pod insertion paths.
- Mission Styles: high-maneuver profile, low-acoustic profile, and endurance/cruise profile.
- CAG Refit Style Option: early shaft/rudder CAG hulls can either convert to Odyssey at refit or be reassigned to full medical-center conversion mission sets.
Mounting and Integration Particulars
- Installed as propulsion module sets using one common 25MW continuous / 27MW short-duration objective plug-and-play pod standard across all classes.
- Mounted in spooned aft hull sections with counter-rotating screw geometry and pod placement tuned for draft control, quiet flow, and ASW efficiency.
- Early flights can retain shaft/rudder layouts while preserving later pod integration path.
Expanded Technical Breakdown
Across the current source set, Odyssey is presented as a navalized electric podded-drive program intended to improve maneuverability, reduce acoustic signature, simplify machinery routing, and preserve propulsion redundancy through multiple independent thrust units.
Common Pod Architecture
Azimuthing
Odyssey is consistently described as a fully azimuthing, 360-degree podded drive system.
Counter-Rotating Props
Each pod is described around twin counter-rotating propellers for efficiency, control, and acoustic management.
Shrouded Propulsors
The recurring propulsor description is a shrouded arrangement intended to support acoustic and hydrodynamic control.
Integrated Electric Drive
Odyssey is always paired with turbines, diesels, batteries, and a shipwide electrical power-distribution architecture.
Current Live Class Baseline
| Class | Pod Count | Per-Pod Rating | Summed Pod Power | Canonical Style Mix |
|---|---|---|---|---|
| CAG | 4 | 25 MW continuous / 27 MW short-duration objective | 100 MW continuous / 108 MW short-duration objective | 2 aft plus 2 forward, arranged as two independently zoned pairs within the aft third. |
| DDG | 3 | 25 MW continuous / 27 MW short-duration objective | 75 MW continuous / 81 MW short-duration objective | 2 aft plus 1 centerline pod farther forward, all within the aft 25-30 percent. |
| FFG | 2 | 25 MW continuous / 27 MW short-duration objective | 50 MW continuous / 54 MW short-duration objective | 1 port and 1 starboard pod in separate, slightly staggered aft-quarter recesses. |
Common 25 MW Physical Planning Envelope
Every Odyssey unit uses the same fleet-wide physical interface. The envelope below has been enlarged for the new rating and checked against ABB's published XO2300 planning data: about 38.4 ft total length, a 20 ft steering flange, propellers up to about 21.7 ft, and approximately 330 short tons when the upper published component weights are combined. Odyssey adds naval shock structure, a shroud, removability, and a 27MW overload objective, so its weight and clearance reservations are deliberately larger. These remain concept-design allowances, not a manufacturer-certified production specification.
| Parameter | Common Fleet Baseline |
|---|---|
| Continuous rated power | 25 MW |
| Short-duration sprint objective | 27 MW, subject to motor, drive, cable, cooling, bearing, insulation, and thermal qualification |
| Overall submerged-module length | 40 ft |
| Maximum pod / shroud width | 23 ft planning maximum |
| Maximum submerged-module depth below local hull interface | 24 ft planning maximum; final dimension is ship-fit and propeller dependent |
| Propulsor diameter allowance | 18-22 ft; the twin counter-rotating arrangement remains developmental |
| Shroud outside diameter | Up to 23 ft planning maximum |
| Hull mounting flange | 20 ft diameter |
| Full azimuth swept envelope | 50 ft diameter planning reservation |
| Steering-module space inside hull | 22 ft diameter x 16 ft high |
| Cooling and service space | 24 ft x 24 ft x 12 ft |
| Total internal installation-height reservation | Approximately 30 ft |
| Estimated complete dry weight | Up to approximately 375 short tons planning allowance |
| Removal and handling rating | Minimum 425 short tons |
Engineering basis: ABB has published an Azipod XO family range reaching 25MW, while its detailed XO2300 product introduction provides dimensions and weights through 23MW. Siemens Energy publishes mono- and twin-propeller podded systems through 23MW, and the Mermaid pod family has a published 5-25MW range. These establish commercial power-scale precedent, but they do not certify a 25MW continuous / 27MW short-duration, shock-qualified, removable, shrouded, counter-rotating combatant pod. Odyssey therefore remains a new naval integration requiring a competitive vendor design and full qualification. ABB 4.5-25MW Azipod XO range | ABB XO2100/XO2300 dimensions and weights | Siemens Energy 5-23MW podded propulsion | Wartsila Mermaid 5-25MW reference
Fitment Verdict by Class
| Class | Envelope Read | Required Design Action |
|---|---|---|
| FFG | Conditional, and the controlling fit. Two 20-ft collars can be arranged within the 66-ft beam, but two 50-ft azimuth envelopes cannot occupy the same longitudinal station. The port and starboard pods therefore require separate recesses with approximately 40 ft or more of longitudinal center-to-center stagger, subject to the selected lateral spacing and final swept geometry. | Complete 3D arrangement, structure, CFD, cavitation, wake, turning-load, and one-pod casualty studies. The published 17-ft draft cannot be treated as a guaranteed overall navigational draft: if 17 ft is an absolute keel-to-waterline limit including appendages, a known 23-25MW pod installation does not fit. |
| DDG | Conditionally feasible. The 88-ft beam and 650-ft length provide more transverse and longitudinal room for two aft pods plus a separated forward centerline unit, but the three swept volumes, magazines, machinery zones, and foundations still require a full arrangement model. | Reserve three 20-ft collars, three 50-ft swept volumes, separated AEGIR feeds, and at least two watertight propulsion zones; verify clean inflow to the forward unit. |
| CAG | Conditionally feasible with the best margin. The 108-ft beam and 800-ft length support two separated two-pod zones, but four units add up to 1,500 short tons of planning dry weight before local foundations and protection. | Carry pod, collar, foundation, and protection weight explicitly in the lightship estimate and verify that either two-pod zone can provide damaged-ship withdrawal. |
Draft lock clarification: each class's listed draft remains the hull-design target. Overall navigational draft with the end-state pods is now an open naval-architecture output. No page should claim that the enlarged Odyssey envelope preserves the listed draft until the local stern lines, recess depth, shaft-line height, propeller diameter, keel/skeg protection, and required under-keel clearance are reconciled.
Longitudinal Placement and Propulsion Survivability
Odyssey pods are distributed for battle-damage separation without moving primary propulsors into the true midbody. Exact stations remain an engineering output, but the arrangement must keep every unit inside hydrodynamically supportable aft-hull flow while preventing one grounding, collision, or underwater-damage event from becoming an automatic fleet-wide propulsion casualty.
| Class | Placement Baseline | Survivability Intent |
|---|---|---|
| FFG | Two pods in independent port and starboard spoon recesses, slightly separated longitudinally within the aft quarter. | Separate foundations, feeds, cooling, controls, and isolation boundaries reduce common-mode loss. Because loss of both pods would leave electrical power but no propulsion, the FFG retains a requirement for an independent emergency take-home propulsion path; its final hardware remains subject to trade study. |
| DDG | Two aft pods plus one centerline pod farther forward, all within the aft 25-30 percent rather than at true midships. | The third unit remains outside the immediate aft-pair damage zone and can preserve limited propulsion and steering after loss of either station. |
| CAG | Two aft pods plus two forward pods arranged as separate pairs within the aft third. | Each pair occupies an independent watertight propulsion zone supplied through separated AEGIR paths, allowing one pair to support damaged propulsion if the other is unavailable. |
- No true-midships installation: the forward DDG and CAG stations remain in the aft part of the hull to limit appendage drag, flow disturbance, acoustic penalties, grounding exposure, and structural intrusion.
- Collar casualty isolation: each removable collar requires independent power, cooling, controls, automatic electrical and fluid isolation, and a double-barrier watertight closure so loss of a pod does not create uncontrolled flooding.
- Protected installation: the deep centerline keel shoe and optional guard skegs remain the first grounding-contact structure, with pod recesses arranged to reduce the chance that one bottom strike reaches every unit.
Operating Doctrine by Speed
| Operating Condition | Odyssey Control Rule |
|---|---|
| Normal cruise and ASW transit | Pods remain nearly aligned with local hull flow. AEGIR balances thrust among stations to minimize drag, wake interaction, vibration, and radiated noise. |
| High-speed sprint | All available pods align fore-and-aft. Large steering angles are software-limited as speed rises; steering relies on small coordinated vectors and differential thrust rather than unrestricted 360-degree rotation. |
| Hard tactical turn | Forward and aft stations vector cooperatively to tighten the turn, but the control law limits angle and rate to remain inside cavitation, heel, structural-load, and propulsor-force envelopes. |
| Slow maneuvering and port operations | Full low-speed azimuth authority enables crabbing, controlled rotation, station keeping, precise backing, and reduced tug dependence. |
| Damaged propulsion | AEGIR isolates the casualty, prevents thrust commands to the damaged station, and rebalances remaining pods for controlled withdrawal rather than full-performance maneuvering. |
Pod location, hull interaction, and steering loads require integrated CFD and model testing. ABB's published pod guidance emphasizes optimizing the propulsor around hull-guided flow, while ITTC testing shows that steering angle and speed can sharply increase fluctuating loads, hull pressure, and cavitation risk. See ABB hydrodynamic optimization and the ITTC azimuthing-pod report.
Canonical Ship Power and Propulsion Allocation
| Class | Gas Turbines | Diesel Generators | PRIME Batteries | Propulsion Allocation | Design Read |
|---|---|---|---|---|---|
| CAG | 4 x LM2500+G4 (35 MW each) | 8 x 8 MW | 6 x 10 MW | 100 MW continuous / 108 MW short-duration objective through 4 Odyssey pods. | Power-rich integrated plant using four fully azimuthing pods; propulsion is tied to the 32,000-ton baseline class while preserving the common fleet-standard pod. |
| DDG | 3 x LM2500+G4 (35 MW each) | 6 x 8 MW | 4 x 10 MW | 75 MW continuous / 81 MW short-duration objective through 3 Odyssey pods. | Three fully azimuthing pods matched to the 15,000-ton baseline DDG under the common fleet-standard propulsion unit. |
| FFG | 2 x LM2500+G4 (35 MW each) | 4 x 8 MW | 4 x 10 MW | 50 MW continuous / 54 MW short-duration objective through 2 Odyssey pods. | Two fully azimuthing pods matched to the 10,000-ton baseline FFG within the same AEGIR electric-ship architecture. |
Baseline Displacement and 20 Percent Growth-Envelope Check
The 20 percent values are conditional naval-architecture limits used to test propulsion and future-growth margin. They are not authorized loadouts or freely assignable payload. Any movement above baseline must be supported by weight, center-of-gravity, draft, freeboard, stability, structure, seakeeping, propulsion, speed, maneuverability, endurance, and class-specific acoustic analysis.
| Class | Locked Baseline | 20% Conditional Envelope | Current Odyssey Read |
|---|---|---|---|
| CAG | 32,000 tons | 38,400 tons | 4 x 25 MW continuous / 27 MW short-duration objective pods is the 32,000-ton baseline. A 35,000-ton BBG-oriented study case and any further growth require complete performance validation; the fleet uses one common interchangeable pod standard rather than class-unique pod ratings. |
| DDG | 15,000 tons | 18,000 tons | 3 x 25 MW continuous / 27 MW short-duration objective pods remains the current baseline; the fleet uses one common interchangeable pod standard. |
| FFG | 10,000 tons | 12,000 tons | 2 x 25 MW continuous / 27 MW short-duration objective pods remains the current baseline; the fleet uses one common interchangeable pod standard. |
Power Logic Through AEGIR
- All major generation and storage assets feed one redundant AEGIR distribution architecture rather than isolated propulsion-only trunks.
- Gas turbines are the sprint and combat-demand generators, Fairbanks Morse Defense PA6B STC diesel generators cover efficient cruise, station keeping, and steady hotel loads, and PRIME batteries handle transient support, silent-running support, ride-through reserve, and peak buffering.
- This means the propulsion figures of 50 MW, 75 MW, and 100 MW are not the total power budgets of the ships. They are the canonical propulsion allocations inside much larger shipwide electric plants.
- Current program read: the site canon now sets every Odyssey pod at 25MW continuous with a 27MW short-duration sprint objective; all pods are fully azimuthing and interchangeable, and the fleet relies on common replacement and rebuild cycles rather than class-unique pod designs.
Propulsion Duty Cycle and Efficiency
- TriSeadon combatants are designed around diesel-dominant cruise and station-keeping, with gas turbines reserved primarily for sprint speed and combat surges.
- Unlike legacy turbine-heavy surface combatants that often burn gas turbines even at moderate speeds, the FFG, DDG, and CAG are intended to use diesel generation plus PRIME battery support for most low- and moderate-speed operations, with gas turbines carrying the real high-speed transit and combat-surge burden.
- This operating pattern reduces fuel burn, cuts gas-turbine operating hours, improves maintenance spacing, and preserves turbine life without giving up high-end sprint performance when it is actually needed.
- Under the single-fuel JP-5 policy, the fleet keeps diesel-dominant efficiency while simplifying storage, transfer, and replenishment across ships, aircraft, boats, vehicles, and support equipment.
- Program implication: TriSeadon should carry lower routine turbine-hour burden and lower long-cycle overhaul pressure than gas-turbine-centric legacy hulls while still preserving combat-speed credibility.
Common Pod Rendering Scale
The pod hardware does not scale with the ship. Every class rendering must reserve the same 40 ft length, up-to-23 ft width/depth Odyssey planning envelope and the same 50 ft azimuth swept envelope; only pod count and stationing change. Final vendor geometry may be smaller but may not exceed those reservations without reopening all three hull arrangements.
| Class | Hull Length / Beam | Pod Length as Hull Length | Pod Width as Beam |
|---|---|---|---|
| FFG | 500 ft / 68 ft | 8.0% | 26.5% |
| DDG | 650 ft / 88 ft | 6.15% | 20.5% |
| CAG | 800 ft / 108 ft | 5.0% | 16.7% |
Mounting and Hull Integration Expansion
- Odyssey is tied to a Costanzi stern and about 15 percent aft waterline taper in the more detailed engineering layer.
- Pods are installed into spoon-shaped aft hull recesses intended to improve inflow and reduce wake disturbance.
- Class stationing is longitudinally distributed within the aft portion of the hull: FFG uses a slightly staggered port/starboard pair, DDG uses an aft pair and a centerline forward unit, and CAG uses separate forward and aft pairs.
- The counter-rotating screw arrangement is part of the effort to keep draft as low as practical without giving away cavitation margin, seaworthiness, clean ASW flow, or transit efficiency.
- Best current recess guidance in the repo is 8 ft aft recess depth and 6 ft midships recess depth, with 7 ft as a CFD-driven adjustment case.
- The 50 ft full-azimuth planning envelope, not the up-to-23 ft static pod width alone, governs station separation, hull clearance, collision avoidance, and damaged-unit isolation.
- Aft recess centers are described in the 0.82-0.90 L region of the hull.
Grounding and Protection Expansion
- The best current engineering note calls for a centerline keel shoe positioned roughly 0.5-1.0 ft below the lowest pod tip.
- This keeps the keel, not the pod, as the first grounding contact.
- Optional guard skegs appear in the design-layer material as a secondary protection measure.
Acoustic and Quieting Expansion
- Odyssey is one of the main quiet-ASW technologies in the TriSeadon concept.
- The source set repeatedly ties pod performance to Prairie-Masker, shrouded counter-rotating propellers, acoustic damping in recess and machinery regions, and ASW ballast conditions.
- Submergence, pod-centerline depth, and recess geometry must be established by class-specific CFD, cavitation, acoustic, and model-basin work using the common full-scale pod envelope.
- Published class draft values are not validated pod-installed drafts until the 19 ft external height, recess depth, keel protection, tip clearance, and all-angle azimuth sweep are reconciled in the naval-architecture model.
Power and Ship Integration Expansion
- Odyssey is always paired with an integrated electric power architecture rather than treated as a stand-alone propulsion feature.
- CAG canonical plant: 4 LM2500+G4 gas-turbine generators at 35MW each, 8 Fairbanks Morse Defense PA6B STC diesel-generator packages in the site's 8MW-class target band, and 6 PRIME battery banks rated at 10MW peak each feeding 3 AEGIR distribution sections.
- DDG canonical plant: 3 LM2500+G4 gas-turbine generators at 35MW each, 6 Fairbanks Morse Defense PA6B STC diesel-generator packages in the site's 8MW-class target band, and 4 PRIME battery banks rated at 10MW peak each feeding 2 AEGIR distribution sections.
- FFG canonical plant: 2 LM2500+G4 gas-turbine generators at 35MW each, 4 Fairbanks Morse Defense PA6B STC diesel-generator packages in the site's 8MW-class target band, and 4 PRIME battery banks rated at 10MW peak each feeding 2 AEGIR distribution sections.
- Gas turbines provide high-demand generation and sprint support, diesels provide efficient cruise and station-keeping generation, and PRIME battery banks support short electric-only quiet-mode windows, ride-through power, and peak-load buffering.
- Odyssey pods are the thrust outputs of that larger electric ship architecture, with canonical continuous propulsion allocations of 100 MW for CAG, 75 MW for DDG, and 50 MW for FFG, rising to short-duration objectives of 108 MW, 81 MW, and 54 MW respectively.
Program Timeline Expansion
- 2032: CAG Block I begins with shaft/rudder fallback if Odyssey is not ready.
- 2033: the chronology source says FFG Block I ends and all ships now move to Odyssey pod propulsion.
- The wider program doctrine is to avoid delaying steel cut for immature propulsion technology.
Resolved Odyssey Canon
- Pod rating lock: every Odyssey pod is locked at 25 MW continuous with a 27 MW short-duration sprint objective. The overload rating is not treated as certified until the complete motor-drive-cable-cooling train passes thermal and endurance qualification.
- Pod interchangeability lock: every pod is fully azimuthing, identical fleet-wide, and replaced on the 60-month refit cycle with rebuilt units flowing back through DLA and regional rebuild yards.
- Pod count lock: CAG uses 4 pods, DDG uses 3 pods, and FFG uses 2 pods.
- Pod placement lock: pods are separated into class-specific longitudinal stations within the aft portion of the hull; DDG and CAG forward stations are not true-midships installations.
- High-speed control lock: physical 360-degree capability is retained, but azimuth angle and turning rate are software-limited as speed rises.
- Physical-envelope lock: every class reserves the same 40 ft long, up-to-23 ft wide/deep, approximately 375-short-ton planning unit, an 18-22 ft propulsor-diameter allowance, a 20 ft mounting flange, and a 50 ft full-azimuth swept envelope.
- Speed lock: current concept estimates are about 30/31 knots for FFG, 31.5/32.5 knots for DDG, and 29.5/30 knots for CAG at full continuous / short-duration objective output. These are powering estimates, not guaranteed contract speeds, until model-basin and full-scale trials validate resistance, wake, propulsive efficiency, cavitation, and available ship-service margin.
- Legacy-source handling rule: older rating, count, diameter, and fixed-pod references are treated as superseded design-history material rather than live program values.
