FFG-64 Cerberus Installation

Three-Mount Baseline

This configuration study overlays the FFG's three fixed Cerberus positions. It does not replace the clean approved FFG-64 ship rendering.

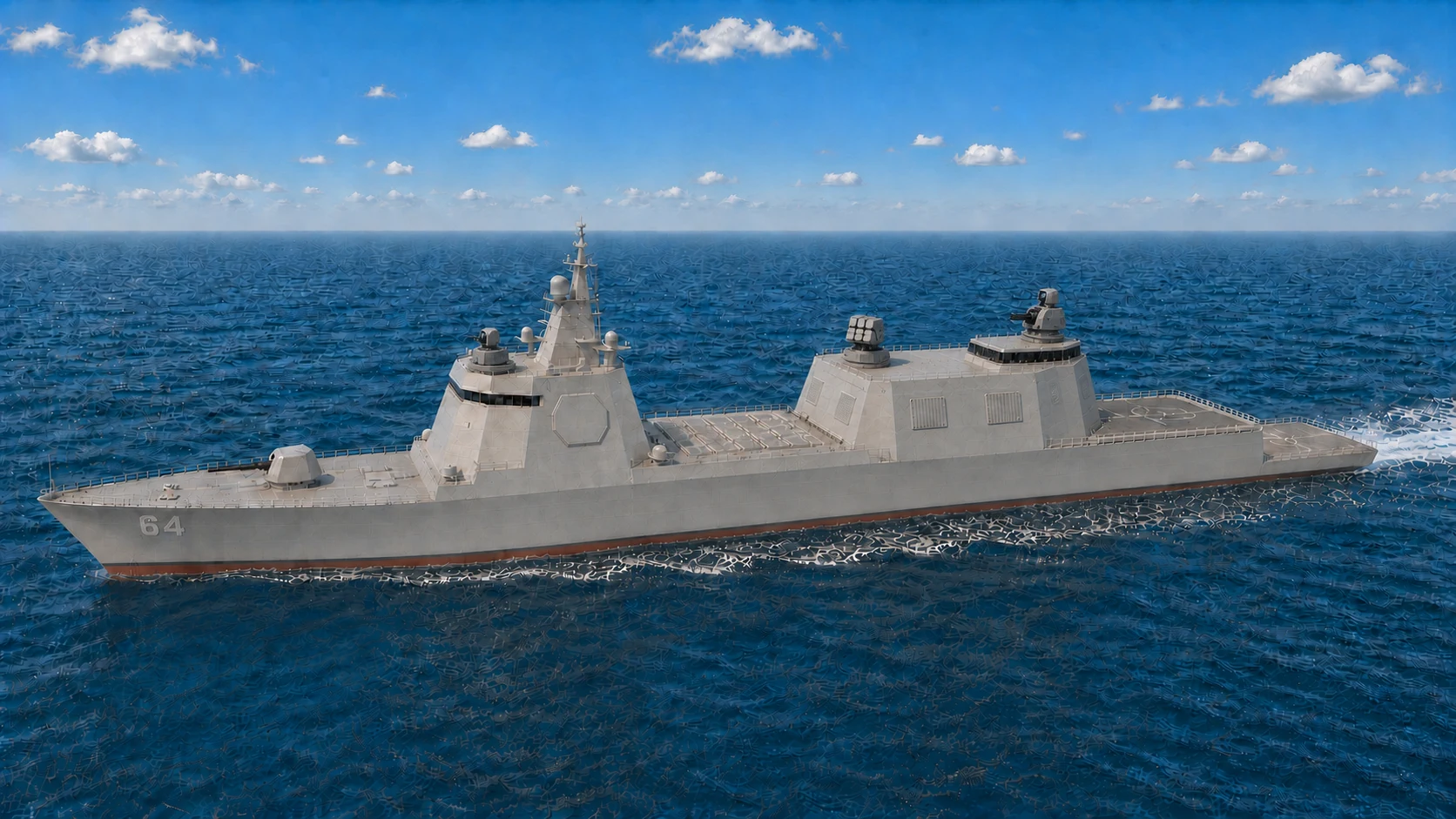

FFG-64 installation study. The locked placement list below controls if perspective makes an individual foundation difficult to distinguish.

Locked Placement

• Position 1: forward-superstructure roof, forward of the main mast.
• Position 2: forward terrace of the aft hangar superstructure, ahead of ATC.
• Position 3: centered on top of ATC, replacing the aft mast position.
• Scale: each position uses the 15-foot Cerberus foundation. The 60-foot hangar roof and 40-foot ATC do not support side-by-side ATC flank mounts in the FFG baseline.
