DDG-152 Cerberus Installation

Five-Mount Baseline

This configuration study overlays the DDG's five fixed Cerberus positions. It does not replace the clean approved DDG-152 ship rendering.

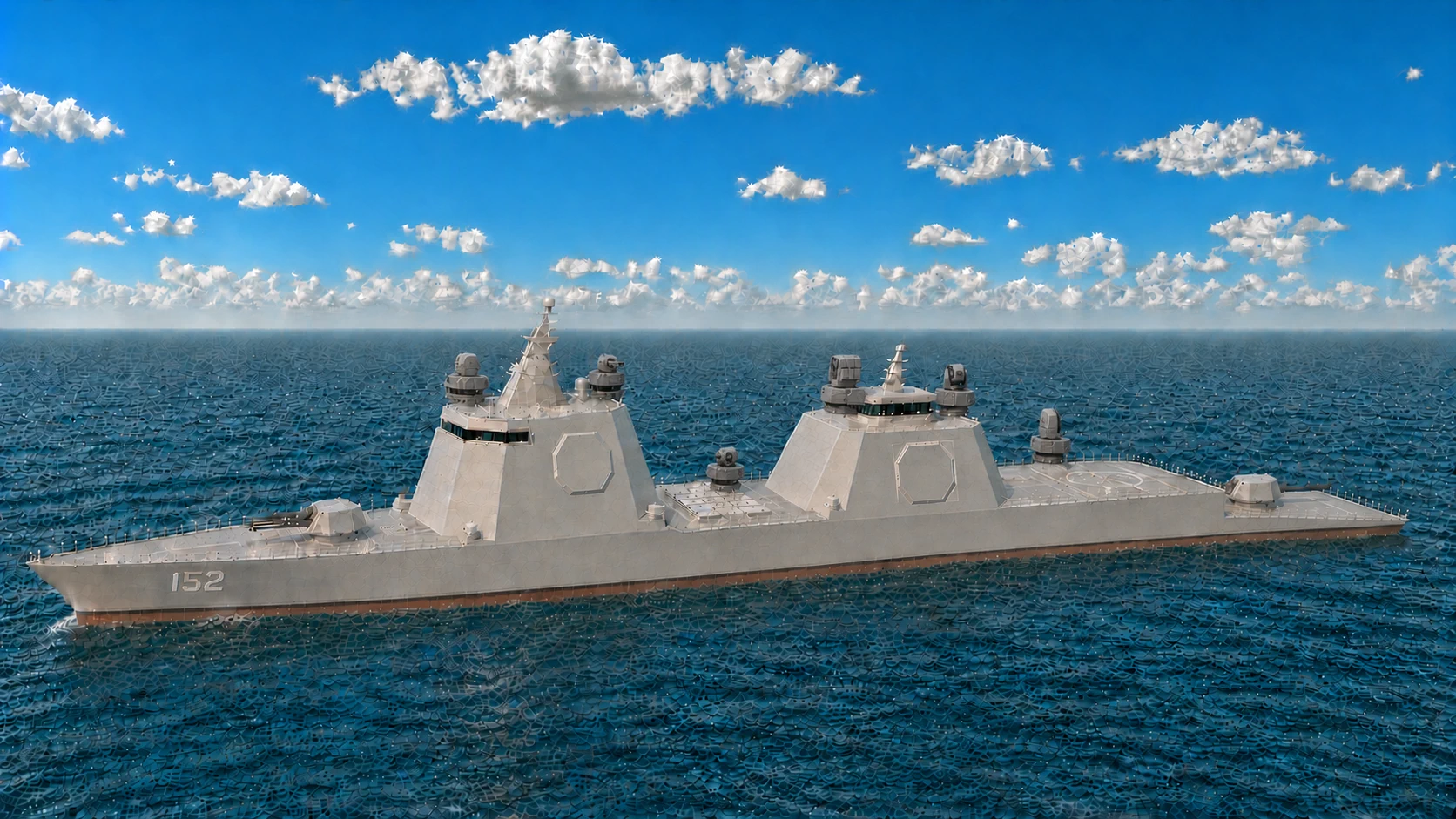

DDG-152 installation study. The locked placement list below is authoritative for the five positions.

Locked Placement

• Positions 1 and 2: forward-superstructure roof, one forward and one aft of the main mast.
• Position 3: centered on the forward terrace of the aft hangar-superstructure roof, ahead of ATC.
• Positions 4 and 5: one port and one starboard of ATC.
• Scale: each position uses the 15-foot Cerberus foundation. The 80-foot hangar roof and 40-foot ATC preserve approximately 20 feet per side for the two ATC-flank positions.
• Flight-deck rule: no fixed Cerberus foundation occupies the helicopter landing area.
